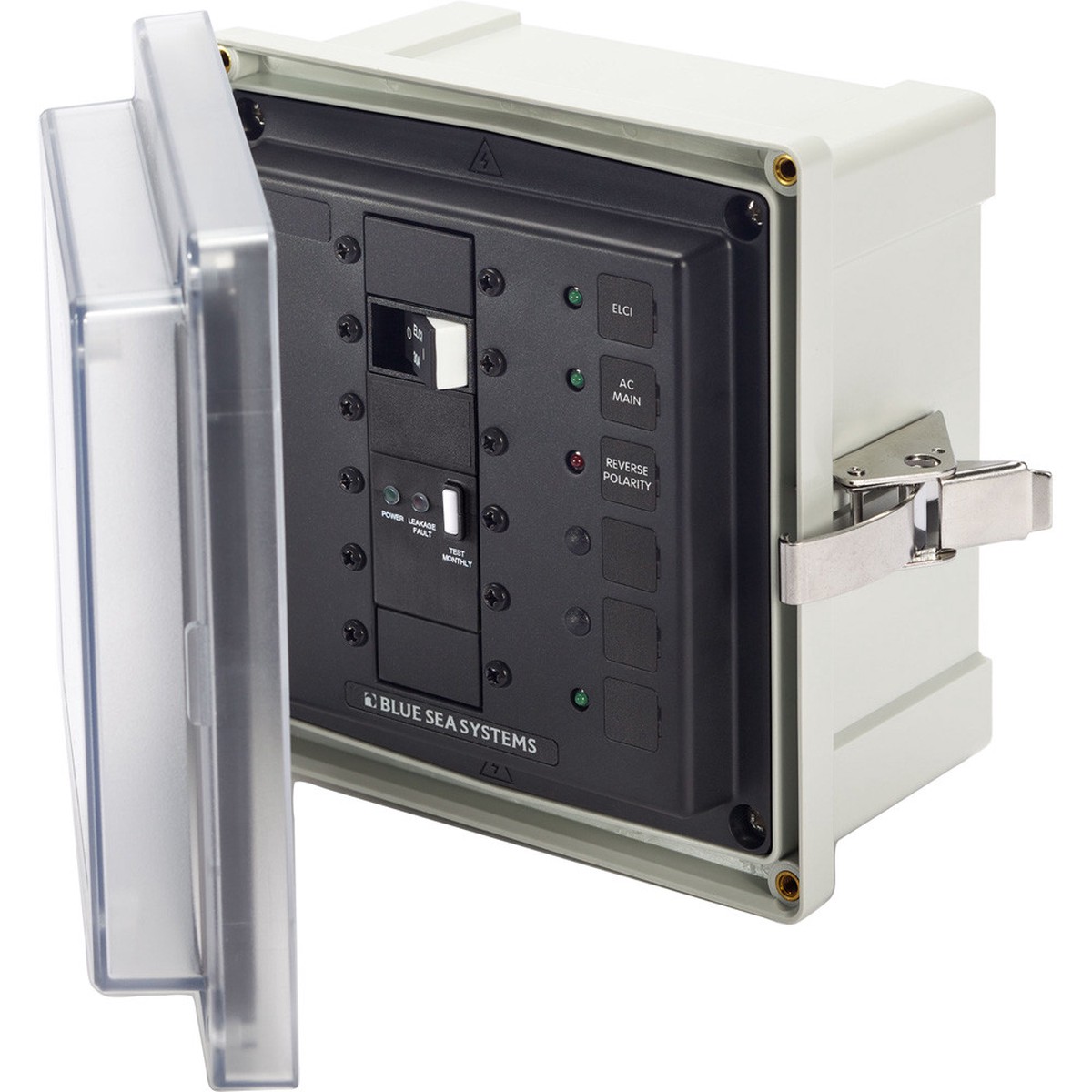

3119 SMS Surface Mount System Panel Enclosure – 120/240V AC / 50A ELCI Main – 1 Blank Circuit PositionThe 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inletFeatures:Includes one 120/240V AC / 50A ELCI Main and one blank positionBlank apertures for custom breaker loadingGlass-filled polycarbonate mounting boxClear cover allows easy view of circuit breaker statusOverlapping cover for strength and increased gasket protectionOversized, formed in place seamless PUR gasketEasily removable stainless steel hinge pin for unobstructed installationStainless steel latch secures cover without penetrating the enclosureBlank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakersStainless steel mounting hardware includedIncludes waterproof glandsLED lights for back lighting and ON indicationTechnical Specifications:Minimum Operating Temperature: -35 CMaximum Operating Temperature: 66 CCover Screws and Hardware: 10-32 Stainless SteelEnclosure Size: 6.0″ x 6.0″ x 4.0″ (152mm x 152mm x 102mm)Exterior Overall Dimensions: 7.6″ x 7.4″ x 4.7″ (192mm x 188mm x 120mm)Mounting Hardware: 1/4″ Diameter, #12 (6 mm)Weight: 7.00lb (3.18 kg)In the Box:3119 EnclosureGlands x 5LabelsMounting hardwareInstruction manual*Sold as an IndividualWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Brochure (pdf)
